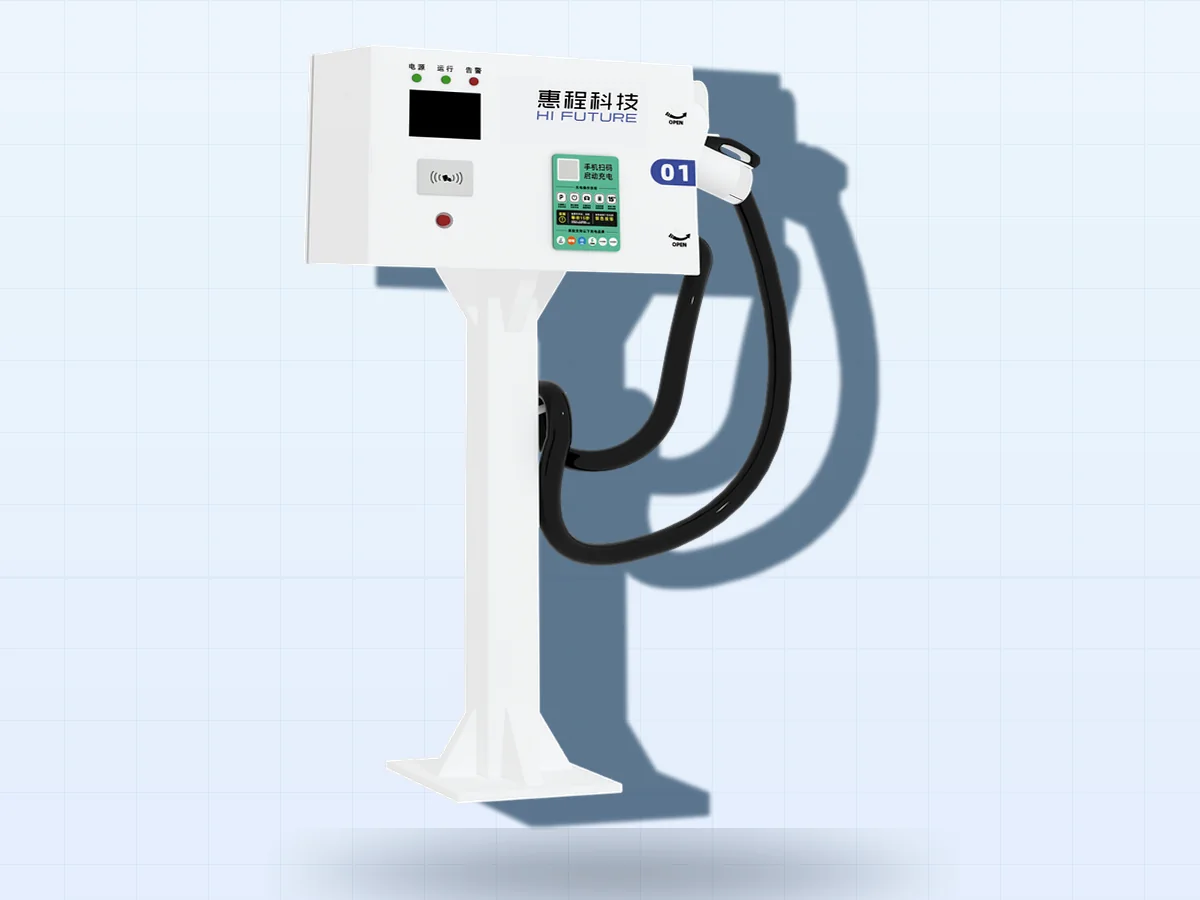

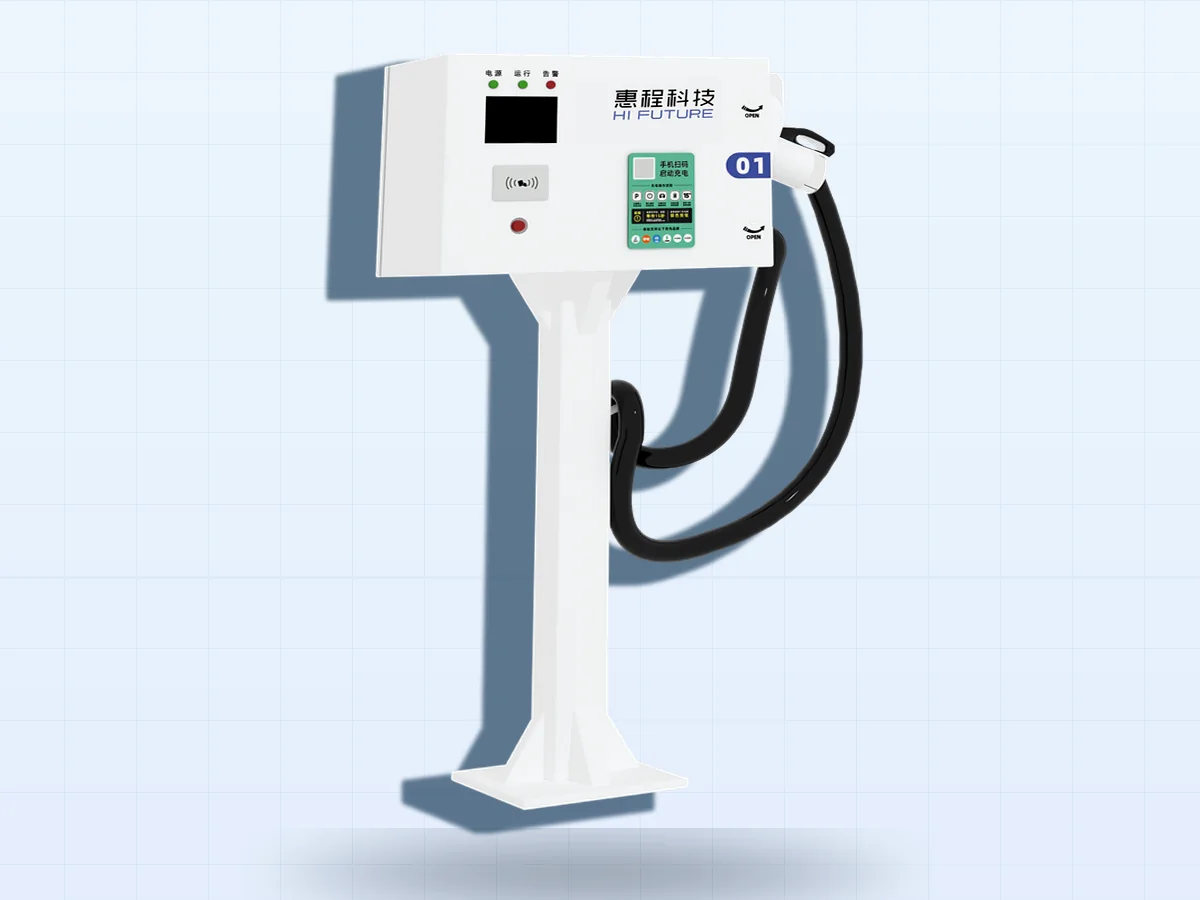

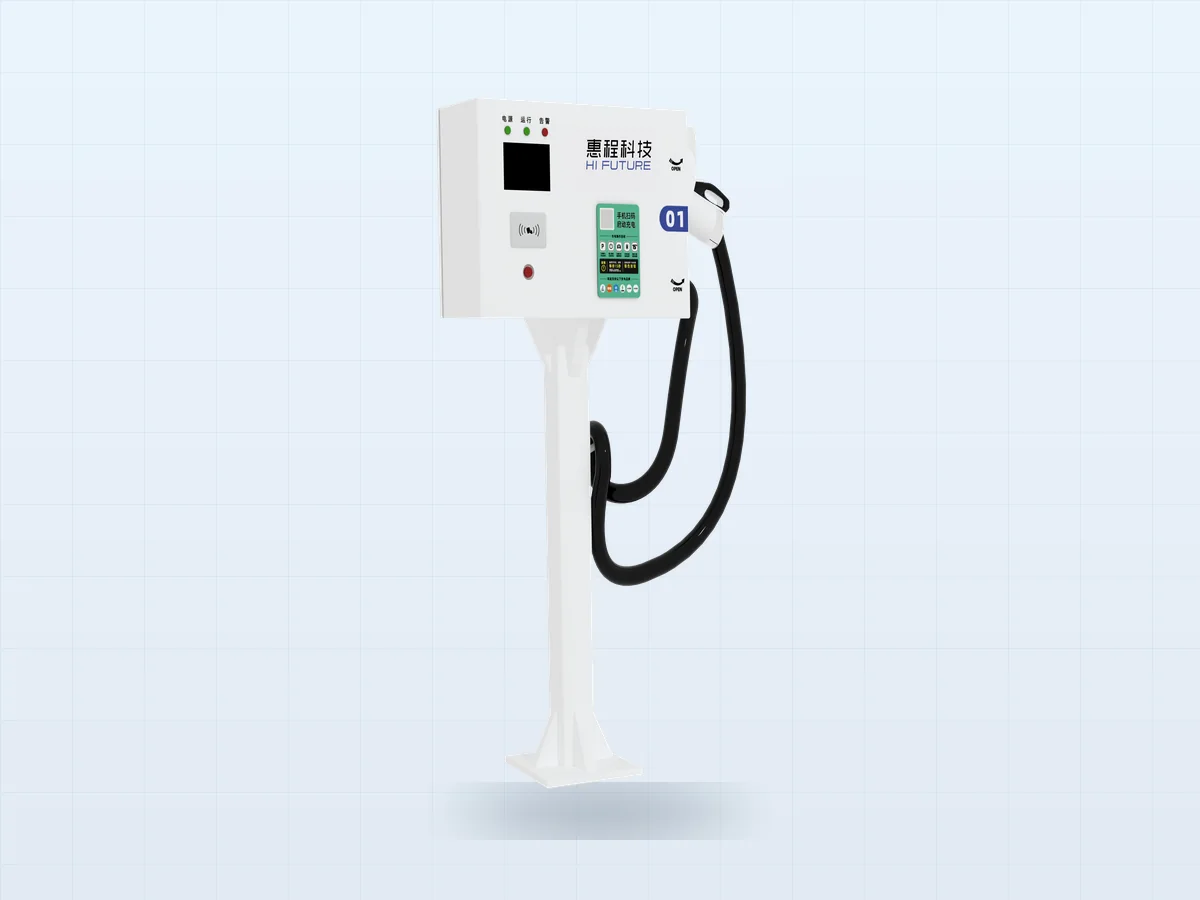

Low-power integrated DC charging pile for residential communities and small commercial venues. Covers 20kW, 30kW, and 40kW models.
| Model | HCEVP-20D / 30D / 40D |
|---|---|
| Rated Power | 20 / 30 / 40 kW |
| Input Voltage | 400Vac ±15% |
| Frequency | 50/60Hz |
| Power Factor | ≥0.99 |
| Harmonics | ≤5% |
| Output Voltage | 200~1000 VDC |
| Max Current per Gun | 67 / 100 / 133A |
| Peak Efficiency | ≥95% |
| Voltage Accuracy | ≤±0.5% |
| Current Accuracy | ≤±1% |
| Ripple P-P | ≤±1% |
| Current Imbalance | ≤3% |
| Cooling | Air Cooling |
| Display | Optional |
| Start Methods | QR / VIN / Card / Plug-and-Charge / Manual |
| Operating Temp | -30~60°C (derating above 50°C) |
| Storage Temp | -40~75°C |
| Humidity | 5~90% RH (non-condensing) |
| Altitude | ≤2000m |
| Output Channels | 1 or 2 |
| Dimensions | L328 × W205 × H1800 mm |
Ideal for residential communities, small commercial venues, and destination charging
Slim profile with minimal footprint
Power factor ≥0.99, efficiency ≥95%, same quality as high-power models
Match the model to your site type, traffic profile, and commercial rollout plan.
Suitable for project-based DC charging station construction and commercial operation.
Supports predictable daily charging demand for fleet, logistics, and service vehicles.
Fits destination and public parking locations requiring reliable DC fast charging.
Hifuture charging products are configured for overseas projects with global certifications, OCPP platform integration, and project-based customization support.
Get a customized quote from our engineering team. From single units to full station deployment, we've got you covered.
