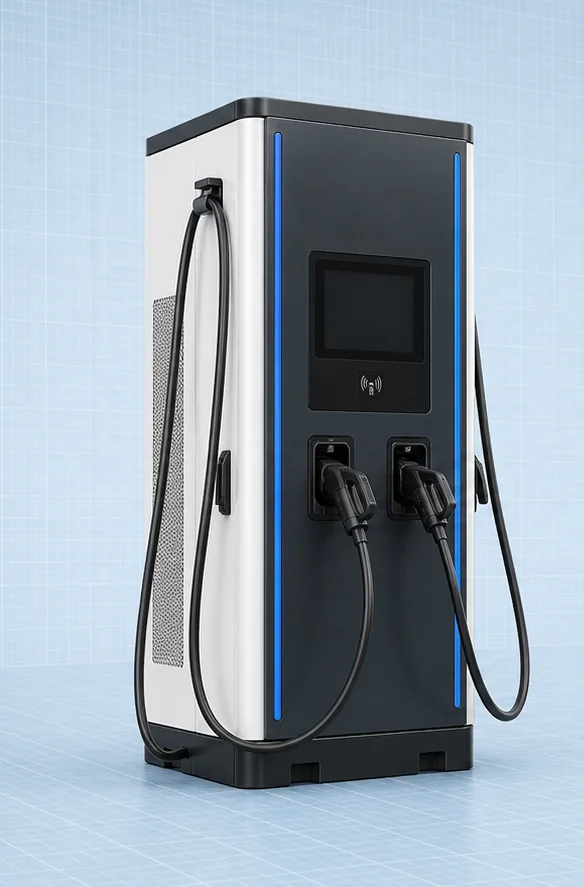

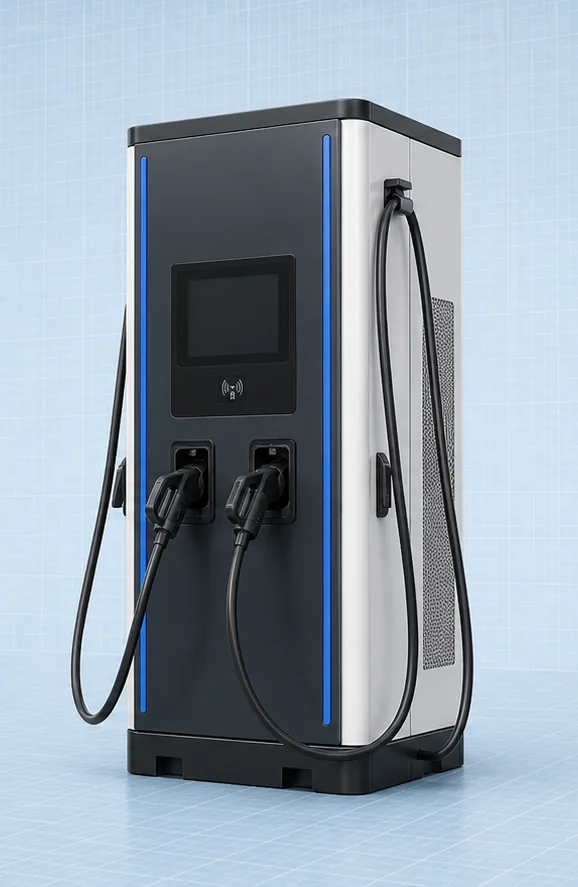

European standard (CE) certified mid-to-high power DC charging pile. OCPP 1.6 + CCS2, dual-channel output for international charging stations.
| Model | HCEVP-120S-U / 160S-U |
|---|---|
| Rated Power | 120 / 160 kW |
| Input Voltage | 400Vac ±15% |
| Frequency | 50/60Hz |
| Power Factor | ≥0.99 |
| Harmonics | ≤5% |
| Output Voltage | 200~1000 VDC |
| Max Current per Gun | 250A |
| Peak Efficiency | ≥95% |
| Voltage Accuracy | ≤±0.5% |
| Current Accuracy | ≤±1% |
| Ripple P-P | ≤±1% |
| Current Imbalance | ≤3% |

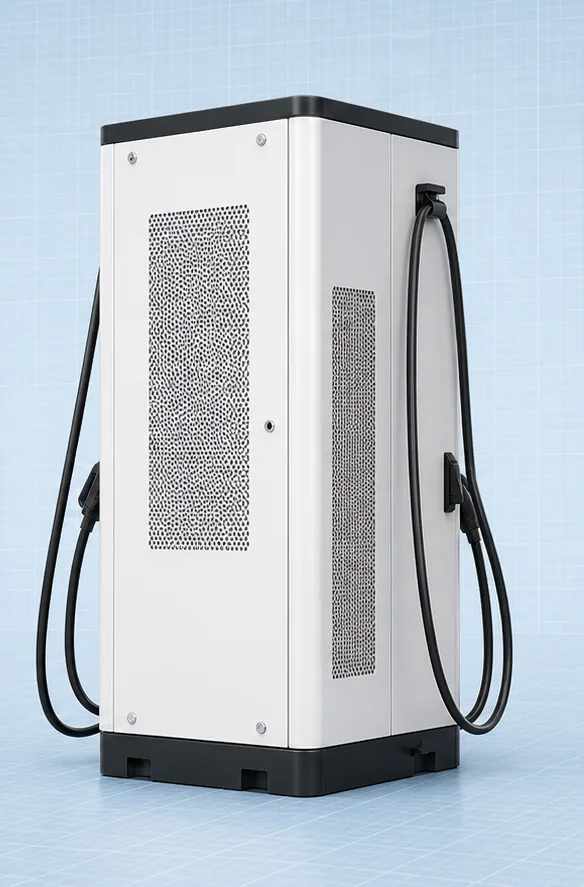

| Cooling | Air Cooling |
| Display | 7" Screen |
| Start Methods | QR / VIN / Card / Plug-and-Charge / Manual |
| Operating Temp | -30~60°C (derating above 50°C) |
| Storage Temp | -40~75°C |
| Humidity | 5~90% RH (non-condensing) |
| Altitude | ≤2000m |
| Output Channels | 2 |
| Communication Protocol | OCPP 1.6 |
| Charging Connector | CCS2 |
| Dimensions | L780 × W585 × H1700 mm |
OCPP 1.6 protocol + CCS2 connector, fully compatible with European charging networks
Standard 2-channel output, serving 2 vehicles per pile
Same electrical performance as domestic models, ensuring worldwide quality consistency
Match the model to your site type, traffic profile, and commercial rollout plan.
Balanced output for city operators who need faster sessions without the footprint and CAPEX of a supercharging station.
Dual-channel DC charging supports vans, ride-hailing fleets, and light trucks with predictable daily charging demand.
A strong first batch choice for local CPOs validating OCPP platform integration and service workflow.
The 120-160kW CE Series is positioned for overseas operators that need a mainstream fast-charging model with dual output, CCS2 interface, OCPP 1.6, and proven electrical performance.
